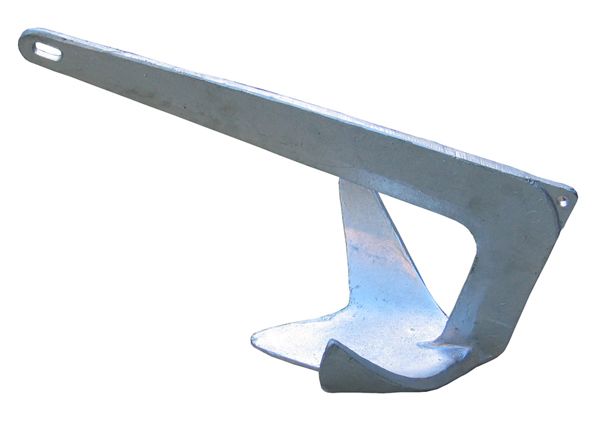

Bruce Anchor
Type：Marine Hardware - Anchor
Type：Marine Hardware - Anchor

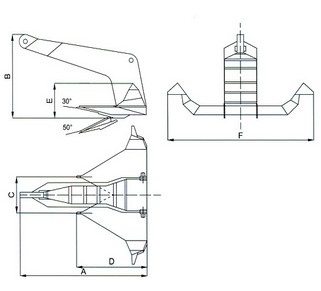

| Bruce Anchor | ||||||
| Nominal Weight (kg) |
Size (mm) | |||||
| A | B | C | D | E | F | |
| 500 | 1827 | 1280 | 500 | 1303 | 606 | 2188 |
| 800 | 2073 | 1452 | 667 | 1479 | 688 | 2484 |
| 1500 | 2648 | 1854 | 723 | 1888 | 878 | 3172 |
| 3000 | 3409 | 2388 | 931 | 2431 | 1131 | 4085 |
| 4500 | 3800 | 2751 | 1047 | 2733 | 1298 | 4605 |
| 5000 | 4029 | 2822 | 1100 | 2873 | 1336 | 4828 |
| 6000 | 4227 | 3028 | 1161 | 3031 | 1430 | 5104 |
| 6500 | 4326 | 3131 | 1192 | 3110 | 1478 | 5242 |
| 9000 | 4846 | 3394 | 1324 | 3456 | 1607 | 5806 |
| 10000 | 5287 | 3563 | 1390 | 3628 | 1687 | 6095 |
| 12000 | 5437 | 3808 | 1486 | 3878 | 1803 | 6514 |
| 15000 | 5728 | 4012 | 1566 | 4085 | 1900 | 6864 |
| 18000 | 6129 | 4292 | 1674 | 4371 | 2032 | 7343 |
| 20000 | 6319 | 4426 | 1726 | 4507 | 2096 | 7571 |
| 30000 | 7225 | 5060 | 1974 | 5153 | 2396 | 8656 |
Our Bruce Anchor has been approved by LR, ABS , DNV, GL, KR, NK etc. and has most advantage in price around the world. | ||||||
◇Prev：6x19 Steel Wire Rope (Ungalvanized and Galvanized)
◇Next：Common Link, Enlarged Link
【Bruce Anchor】
