Polyester Flat Webbing Sling, EN1492-1
Type:Lifting Hoist Products - Webbing Sling



Polyester Flat Webbing Sling, EN1492-1
Colourcoded
according to
EN1492-1
Working Load Limit with 1 webbing sling Working Load Limit with 2 webbing sling
Straight
lift
Choked
lift
β  Straight
lift up to
45
Choked
lift up to
45
Straight
lift
45-60
Choked
lift
45-60
0-7 7-45 45-60

1 0.8 2 1.4 1 1.4 1.12 1 0.8
WLL 1T 1.000  800  2.000  1.400  1.000  1.400  1.120  1.000  800
WLL 2T 2.000  1.600  4.000  2.800  2.000  2.800  2.240  2.000  1.600
WLL 3T 3.000  2.400  6.000  4.200  3.000  4.200  3.360  3.000  2.400
WLL 4T 4.000  3.200  8.000  5.600  4.000  5.600  4.480  4.000  3.200
WLL 5T 5.000  4.000  10.000  7.000  5.000  7.000  5.600  5.000  4.000
WLL 6T 6,000 4,800 12,000 8,400 6,000 8,400 6,720 6,000 4,800
WLL8T 8,000 6,400 16,000 11,200 8,000 12,000 8,960 8,000 6,400
WLL10T 10,000 8,000 20,000 14,000 10,000 14,000 11,200 10,000 8,000
WLL 12T 12,000 9,600 24,000 16,800 12,000 16,800 13,440 12,000 9,600

Type

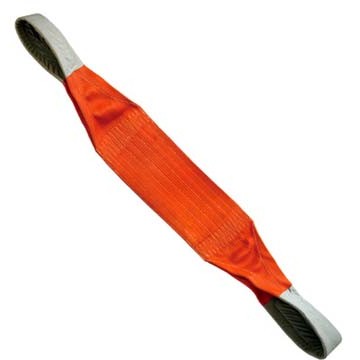

-Double ply polyester webbing sling with reinforced lifting eyes

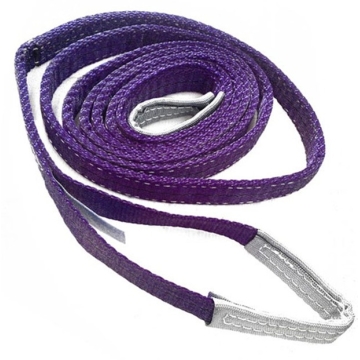

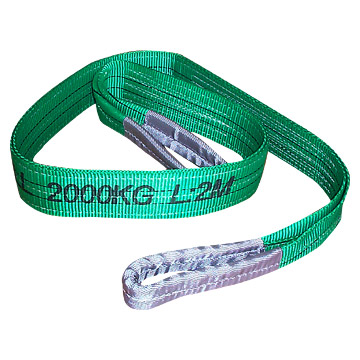

-polyester flat webbing sling

Technical specifications
-Wide & flat load bearing surface

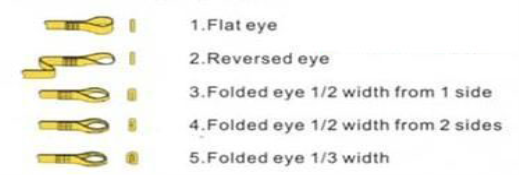

-Sling has reinforced eyes at both ends
-Capacity from 1t to 12t
-Colour coded according to EN 1492-1.

Characteristics
-Low elongation.

Norms

-According to Machine Directive 2006/42/EC & EN 1492-1
-Safety Factor: 7:1 to EN 1492-1
-Safety Factor of 6:1 or 5:1 is available upon request
