L Series Horizontal Lifter | ||||
Part No. | Model | WLL(tonnes) | Jaw Opening(mm) |
Weight(kg) |
FD-0036 | L0.8 | 0.8 | 0-15 | 2 |
FD-0037 | L1 | 1 | 0-20 | 4 |
FD-0038 | L1.6 | 1.6 | 0-25 | 6.5 |
FD-0039 | L2.5 | 2.5 | 0-30 | 11 |
FD-0040 | L2.5(B) | 2.5 | 25-50 | 11 |
FD-0041 | L3.2 | 3.2 | 0-40 | 12.5 |
FD-0042 | L3.2(B) | 3.2 | 30-60 | 12.5 |
FD-0043 | L5 | 5 | 0-50 | 19 |
FD-0044 | L5(B) | 5 | 50-80 | 20 |

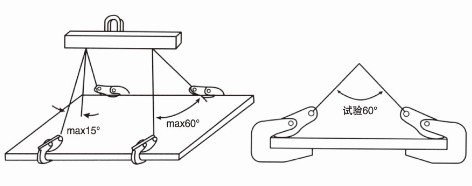

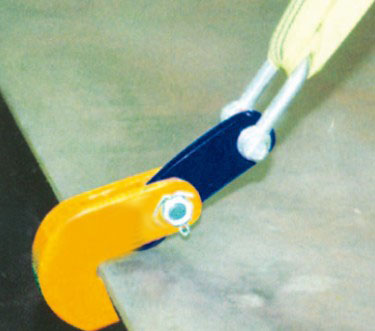

L horizontal plate clamp Working load limit(WLL):0.8-5T Use: ● Suitable for lifting and transport of steel plates 、construction and profiled bar in horizontal position. ● Manufactured from high quality carbon steel. ● Avoid snatch or shock loading. ● The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.In lifting operations the clamps can be used in pairs or multiples. ● The main body and parts are made from die-forge special alloy steels, which are optimally tempered for maximum strength and durability. |
