LA Series Horizontal Lifter | ||||
Part No. | Model | WLL(tonnes) | Jaw Opening(mm) | Weight(kg) |
FD-0045 | LA1 | 1 | 0-30 | 4 |
FD-0046 | LA2 | 2 | 0-50 | 5.5 |
FD-0047 | LA3.2 | 3.2 | 0-60 | 8 |
FD-0048 | LA5 | 5 | 10-80 | 11.5 |
FD-0049 | LA6 | 6 | 10-100 | 14.5 |
FD-0050 | LA10 | 10 | 20-120 | 30 |

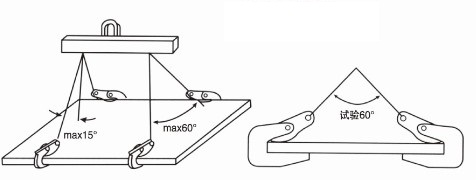

LA horizontal plate clamp Working load limit(WLL):1.0-10T Use: ● Suitable for lifting and transport of steel plates 、construction and profiled bar in horizontal position. ● Manufactured from high quality carbon steel. ● Avoid snatch or shock loading. ● The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.In lifting operations the clamps can be used in pairs or multiples |
