PDB Series Horizontal Lifter
Type:Lifting Hoist Products - Lifting Clamp Trolley



PDB Series Horizontal Lifter
Part No. Model WLL(tonnes) Jaw
Opening(mm)
Weight(kg)
FD-0051 PDB0.8 0.8 0-25 2.5
FD-0052 PDB1 1 0-30 3.5
FD-0053 PDB1.6 1.6 0-30 4
FD-0054 PDB2 2 0-40 5
FD-0055 PDB3.2 3.2 0-45 6
FD-0056 PDB4 4 0-50 6.5
FD-0057 PDB5 5 0-55 7.5
FD-0058 PDB6 6 0-65 10.5
FD-0059 PDB6(B) 6 0-130 10.5
FD-0060 PDB8 8 0-100 22
FD-0061 PDB10 10 0-125 22

PDB horizontal plate clamp

Working load limit(WLL)
0.8-10T.

Use


 Suitable for lifting and transport of steel plates
construction and
profiled bar in horizontal position.

 Manufactured from high quality carbon steel.

 Avoid snatch or shock loading.

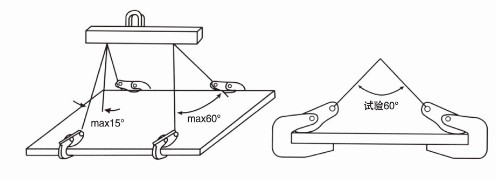

 The working load limit is the maximum load that the clamp are
authorized to support when used in pairs with a lift angle of 60°.In
lifting operations the clamps can be used in pairs or multiples.
