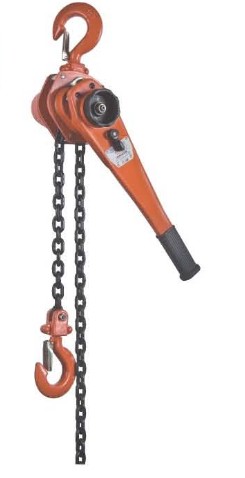

Manual Lever Block, FD-L Type

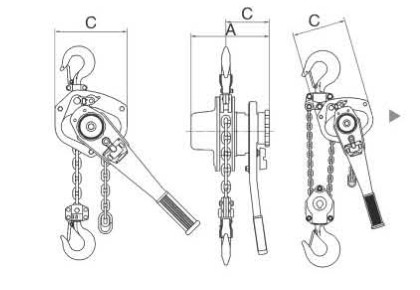

Model	Capacity (T)	Standard lift (M)	Running Test Load  (T)	No. of  Falls  of Load  Chain	Load  Chain Diameter (mm)	Dimensions (mm)			Net  Weight (kg)
						A	B	C
FD-L 0.5T	0.5	1.5	0.75	1	5	102	80	95	3.5
FD-L 0.75T	0.75	1.5	1.125	1	6.3	155	88	135	6.6
FD-L 1.5T	1.5	1.5	2.25	1	7.1	170	110	162	11
FD-L 3.0T	3	1.5	4.5	1	9	198	120	211	17
FD-L 6.0T	6	1.5	9	2	9	198	120	254	27.5
FD-L 9.0T	9	1.5	13.5	3	9	198	120	319	47
Remarks: the standard lift we accept orders to 12m lift.
