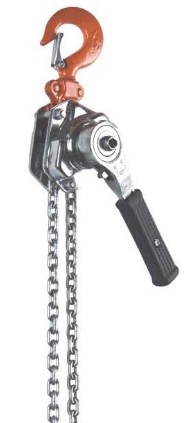

Lever Block, FD2 Type
Type：Lifting Hoist Products - Lifting Hoist

Lever Block, FD2 Type

Capacity (T) 0.25

Standard Lift (M) 1

Running Test Load (KG) 3.75

No. of Load Chain Fall 1

Load Chain Diameter (MM) 4

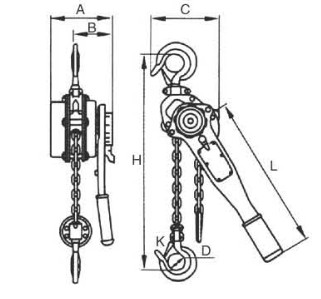

Diamensions (MM)        A 92

                                       B 72

                                       C 85

                                       D 30

                                       H 230

                                       L 160

                                       K 25

Net Weight (KG) 1.8

◇Prev：6x19 Steel Wire Rope (Ungalvanized and Galvanized)
◇Next：Chain Block, FD-SZA

【Lever Block, FD2 Type 】

Lever Block, FD2 Type

Capacity (T)	0.25
Standard Lift (M)	1
Running Test Load (KG)	3.75
No. of Load Chain Fall	1
Load Chain Diameter (MM)	4
Diamensions (MM) A	92
B	72
C	85
D	30
H	230
L	160
K	25
Net Weight (KG)	1.8
