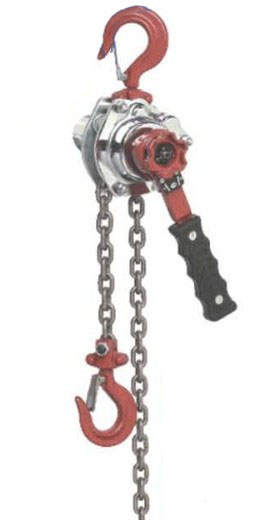

Lever Block, FD3 Type
Type：Lifting Hoist Products - Lifting Hoist

Lever Block, FD3 Type

Model 0.25 0.5

Capacity (KG) 250 500

Lift Height (M) 1 1.5

Test Load (KG) 3.75 7.5

Head Romm (MM) 215 255

No. of Load Chain Fall 1 1

Hand-pull Lift Force (N) 125 180

Chain Dia (MM) 4*12 5*15

Net Weight (KG) 0.35 0.55

◇Prev：6x19 Steel Wire Rope (Ungalvanized and Galvanized)
◇Next：Chain Block, FD-SZA

【Lever Block, FD3 Type 】

Lever Block, FD3 Type

Model	0.25	0.5
Capacity (KG)	250	500
Lift Height (M)	1	1.5
Test Load (KG)	3.75	7.5
Head Romm (MM)	215	255
No. of Load Chain Fall	1	1
Hand-pull Lift Force (N)	125	180
Chain Dia (MM)	4*12	5*15
Net Weight (KG)	0.35	0.55
