Inversion Hanging Electric Chain Hoist, FD-DG Type | |||
Model | FD-DG10 | FD-B10 | |
Capacity (t) | 1 | 1 | |
Standard lift (m) | 10 | 10 | |
Lifting speed (m/min) | 7 | 6/2 | |
Motor Power (kw) | 1.6 | 1.2/0.4 | |
Power Supply | 3-Phase/380V50Hz | ||
Control voltage (V) | 24V | ||
Insulation grade | F | ||
Rating | 40% | ||
Spec. of load chain | Ø7.1X21 | ||
No. of chain | 1 | 1 | |
Working level | M4 | M4 | |
Running test load (Kn) | 1.25 | 1.25 | |
Length of lable (m) | 10 | 10 | |
Net weight (Kg) | 67 | 72 | |
Extea weight per meter of extra lift (kg) | 1.1 | 1.1 | |
Minimum distance between hooks (mm) | 520 | 520 | |

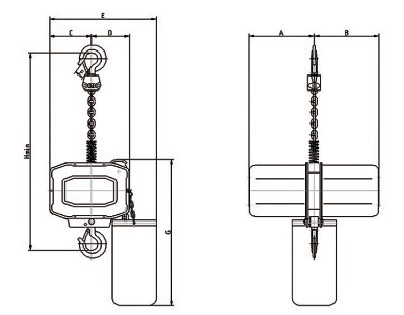

Dimension | A (mm) | 245 | 245 |
B (mm) | 245 | 245 | |
C (mm) | 158 | 158 | |
D (mm) | 142 | 142 | |
E (mm) | 402 | 402 | |
F (mm) | 33 | 33 | |
G (mm) | 550 | 550 | |

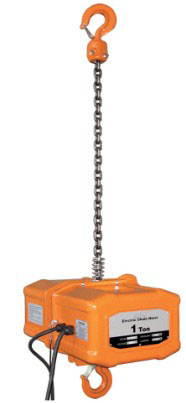

Inversion hanging electric chain hoist can load when the hook hitches on the beam of ceiling or on a fixed objects. It is used for occasional construction sites, stage and theatre locations. If hung the body of the hoist on the beam, it also can be used as usual hosit. It has single speed and double speed. The load capacity is 1000kgs. |
