Ordinary Mild Steel Link Chain, Short Link Chain, Chain, Short Chain, Galvanized Chain, Mild chain
Type:Chain - Welded Link Chain

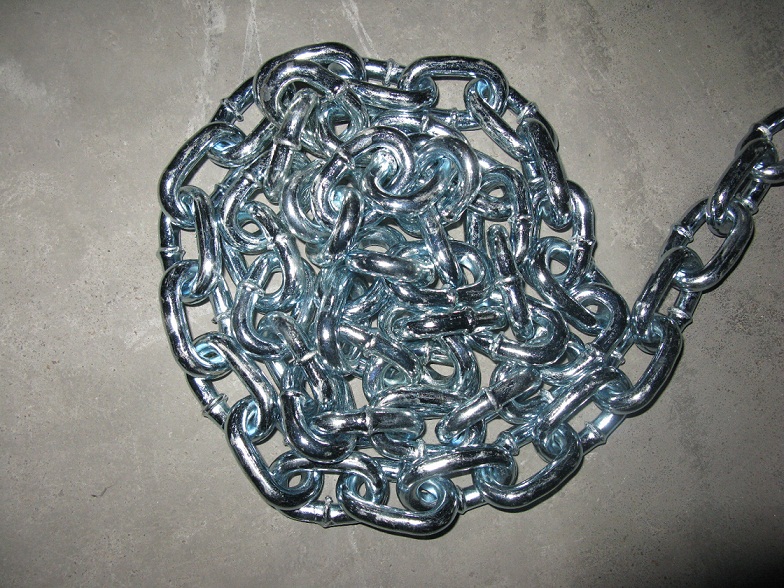

Ordinary Mild Steel Link Chain, Short Link Chain
Link Specification Test Load Breaking
Load
Net WT/200ft (kg)
D L W
IN MM MM MM KG KG B.F. H.D.G.
1/8 3.20  16  12 200 400 11.40  11.74
5/32 4.00  18.5  14.5 300 600 18.60  19.00
3/16 4.70  19  17 400 800 26.20  27.00
7/32 5.50  20  19 550 1100 36.80  38.00
1/4 6.35  22  21 750 1500 50.00  51.50
5/16 7.94  26  26 1200 2400 80.00  82.40
3/8 9.50  28  32 1700 3400 122.00  125.70
7/16 11.11  33  36 2300 4600 164.00  169.00
1/2 12.70  39  43 3000 6000 210.00  216.00
5/8 15.80  45  53 4700 9400 334.00  344.00
3/4 19.00  55  63 6800 13600 485.00  499.00
7/8 22.20  64  74 9250 18500 656.00  675.00
1 25.40  73  84 12150 24300 870.00  896.00
Material: Carbon Steel
Surface treatment: electric galvanized, self color, hot dip galvanized, black painted.
Package: Gunny bag, PP bag, reel, carton, wooden box, drums...
