Pear Shaped Quick Link, Zinc Plated, Pear Quick Link, Stainless Steel Pear Shaped Quick Link
Type：Rigging Hardware - Quick Link

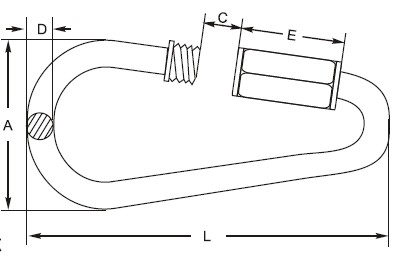

Pear Shaped Quick Link, Zinc Plated

ART. NO. SIZE
mm A
mm C
mm D
mm L
mm E
mm SWL
Lbs N.W.
kg/100pcs

FD-507 6 42.8 14.0 6 80 25.0 550 5.20

FD-507 8 50.8 17.0 8 100 31.5 1210 15.00

FD-507 10 63.5 20.5 10 117 36.0 1320 20.00

FD-507 12 76.0 23.0 12 140 43.0 2425 32.00

◇Prev：Ordinary Mild Steel Link Chain, Short Link Chain, Chain, Short Chain, Galvanized Chain, Mild chain
◇Next：6x19 Stainless Steel Wire Rope, EN 12385

【Pear Shaped Quick Link, Zinc Plated, Pear Quick Link, Stainless Steel Pear Shaped Quick Link】

Pear Shaped Quick Link, Zinc Plated
ART. NO.	SIZE mm	A mm	C mm	D mm	L mm	E mm	SWL Lbs	N.W. kg/100pcs
FD-507	6	42.8	14.0	6	80	25.0	550	5.20
FD-507	8	50.8	17.0	8	100	31.5	1210	15.00
FD-507	10	63.5	20.5	10	117	36.0	1320	20.00
FD-507	12	76.0	23.0	12	140	43.0	2425	32.00
