Coupler Lock Pin, Yellow Zinc Plated, Zinc Plated, Lock Pin, Yellow Zinc Plated Coupler Lock Pin
Type：Rigging Hardware - Clips Rings

Coupler Lock Pin, Yellow Zinc Plated, Zinc Plated

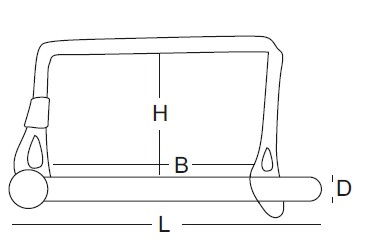

Safety Lock Pin D dia. B usable H loop L pin

ART. NO. Width Length Clearance Length

SF-375 1/4 1-3/4 1-1/2 2-1/16

SF-375 1/4 2-1/8 1-11/16 2-1/2

SF-375 1/4 2-9/16 1-3/4 2-7/8

SF-375 1/4 2-15/16 1-17/32 3-3/16

SF-375 1/4 3-1/2 1-9/16 3-23/32

SF-375 5/16 2-7/16 1-23/32 2-25/32

SF-375 3/8 1-15/32 1-1/2 1-21/32

SF-375 3/8 2-1/4 1-17/32 2-17/32

◇Prev：Ordinary Mild Steel Link Chain, Short Link Chain, Chain, Short Chain, Galvanized Chain, Mild chain
◇Next：6x19 Stainless Steel Wire Rope, EN 12385

【Coupler Lock Pin, Yellow Zinc Plated, Zinc Plated, Lock Pin, Yellow Zinc Plated Coupler Lock Pin】

Coupler Lock Pin, Yellow Zinc Plated, Zinc Plated
Safety Lock Pin	D dia.	B usable	H loop	L pin
ART. NO.	Width	Length	Clearance	Length
SF-375	1/4	1-3/4	1-1/2	2-1/16
SF-375	1/4	2-1/8	1-11/16	2-1/2
SF-375	1/4	2-9/16	1-3/4	2-7/8
SF-375	1/4	2-15/16	1-17/32	3-3/16
SF-375	1/4	3-1/2	1-9/16	3-23/32
SF-375	5/16	2-7/16	1-23/32	2-25/32
SF-375	3/8	1-15/32	1-1/2	1-21/32
SF-375	3/8	2-1/4	1-17/32	2-17/32
