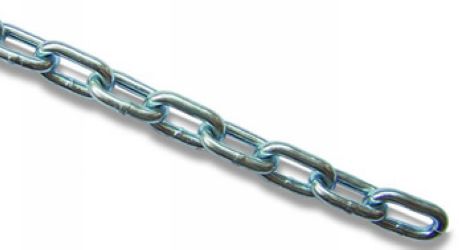

NACM2003 Standard Link Chain, Proof Coil Chain NACM2003 (G30)
Type:Chain - Welded Link Chain

NACM2003 Standard Link Chain
Proof Coil Chain NACM2003 (G30)
Trade Size Material
Diameter
Working Load
Limit
Proof Test Breaking Force
Min
Inside
Length
Inside
Width
MM IN IN MM LBS KG LBS KN LBS KN IN MM IN MM
4 1/8 0.156 4 400 180 800 3.6 1600 7.2 0.94 23.9 0.25 6.4
5.5 3/16 0.217 5.5 800 365 1600 7.2 3200 14.4 0.98 24.8 0.3 7.7
7 1/4 0.276 7 1300 580 2600 11.6 5200 23.2 1.24 31.5 0.38 9.8
8 5/16 0.331 8.4 1900 860 3800 16.9 7600 33.8 1.29 32.8 0.44 11.2
10 3/8 0.394 10 2650 1200 5300 23.6 10600 47.2 1.38 35 0.55 14
11.9 7/16 0.488 11.9 3700 1680 7400 32.9 14800 65.8 1.64 41.6 0.65 16.6
13 1/2 0.512 13 4500 2030 9000 40 18000 80.2 1.79 45.5 0.72 18.2
16 5/8 0.63 16 6900 3130 13800 61.3 27600 122.6 2.2 56 0.79 20
20 3/4 0.787 20 10600 4800 21200 94.3 42400 188.6 2.76 70 0.98 25
22 7/8 0.866 22 12800 5810 25600 114.1 51200 228.2 3.03 77 1.08 27.5
26 1 1.02 26 17900 8140 35800 139.1 71600 318.2 3.58 90.9 1.25 31.7
