DIN5686 knotted chain
Type:Chain - Weldless Chain





DIN5686 knotted chain

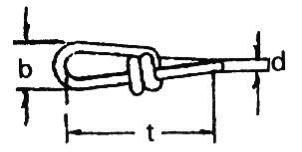

NO. DIAMETER
d
INSIDE
LENGTH   t
OUTSIDE
WIDTH  b
BREAKING
LOAD
WEIGHT
PER
100M
MM MM MM KG KG
14 1.40  20.00  6.50  16 4.2
16 1.60  23.00  7.00  22 6
20 1.80  26.50  8.00  30 7.3
22 2.00  28.00  9.00  40 9
25 2.20  31.00  10.00  50 11
27 2.50  35.00  11.00  70 14
30 2.80  39.00  12.50  90 17
32 3.10  41.00  14.00  120 21
35 3.40  44.00  15.50  140 26
40 3.80  46.00  17.00  160 34
45 4.20  52.00  19.00  170 41
50 4.60  58.00  20.50  180 50
55 5.00  60.00  22.50  190 57
