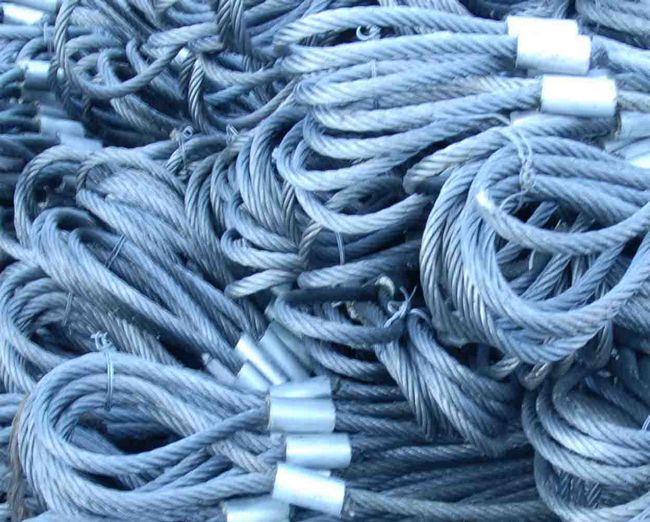

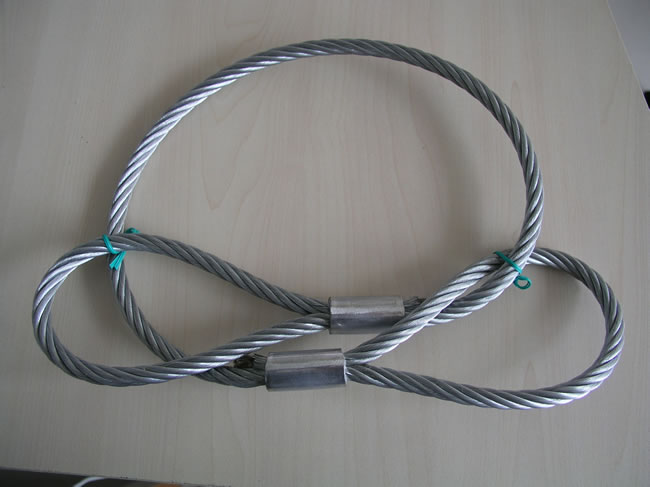

Sling with Soft Eye

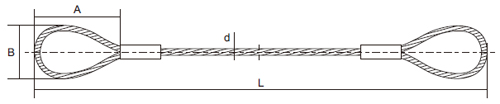

Diameter	Length	Width	1570N/mm² (160kgf/mm²)		1670N/mm² (170kgf/mm²)		1770N/mm² (180kgf/mm²)
d	A	B
mm	mm	mm	MBL (T)	SWL (T)	MBL (T)	SWL (T)	MBL (T)	SWL (T)
6	160	80	/	/	/	/	2.00	0.33
9	200	100	3.63	0.61	3.87	0.64	4.10	0.68
10	240	120	4.48	0.75	4.77	0.80	5.06	0.84
12	240	120	6.46	1.08	6.87	1.15	7.28	1.12
14	240	120	8.79	1.47	9.35	1.56	9.91	1.65
16	280	140	11.48	1.91	12.21	2.04	12.95	2.16
18	320	160	14.53	2.42	15.46	2.58	16.39	2.73
20	360	180	17.94	2.99	19.08	3.18	20.22	3.37
22	400	200	21.71	3.62	23.09	3.85	24.48	4.08
24	440	220	25.84	4.31	27.48	4.58	29.13	4.86
26	480	240	30.33	5.05	32.26	5.38	34.18	5.70
28	520	260	35.16	5.86	37.41	6.23	39.65	6.61
30	560	280	40.37	6.73	42.94	7.16	45.51	7.59
32	600	300	45.40	7.57	48.37	8.06	51.43	8.57
36	640	320	57.34	9.56	61.22	10.20	65.10	10.85
40	680	340	70.72	11.78	75.62	12.60	80.41	13.40
44	720	360	85.62	14.27	91.43	15.24	97.25	16.24
48	760	380	101.10	16.85	108.16	18.03	115.31	19.22
Usage: Lifting , Packing , Towage , Mining .
