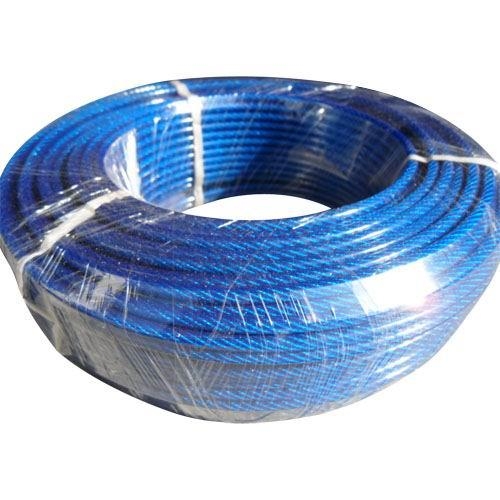

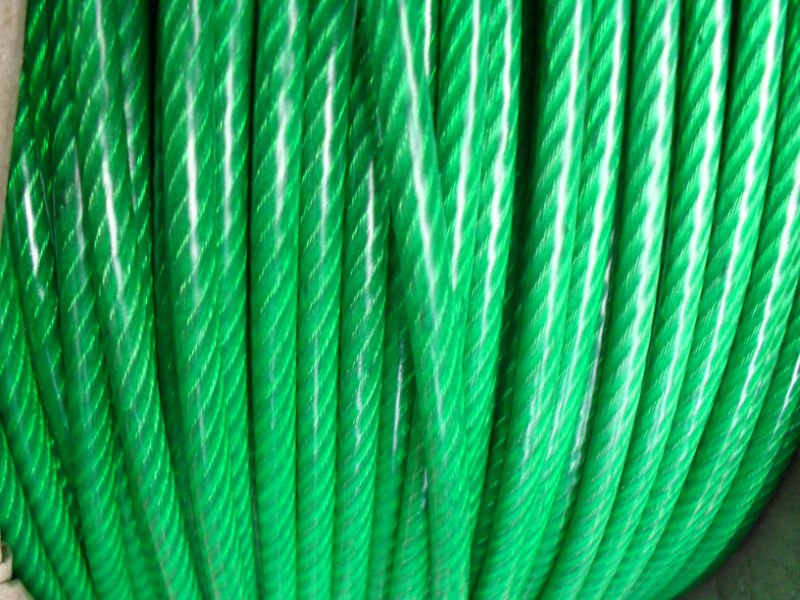

PVC Coated Wire Rope
Construction	Diameter	Nominal Breaking Load (KN)			Approx. Weight
	mm	1670Mpa	1770Mpa	1960Mpa	kg/100m
6x7	2-3	2.22	2.35	2.60	2.10
	2-3.5	2.22	2.35	2.60	2.50
	3-4	4.99	5.29	5.86	4.30
	3-5	4.99	5.29	5.86	5.30
	4-5	8.87	9.41	10.42	7.20
	4-5.5	8.87	9.41	10.42	7.80
	4-6	8.87	9.41	10.42	8.40
	5-6	13.87	14.70	16.28	10.90
	5-7	13.87	14.70	16.28	12.30
7x7	1.59-3.18	/	1.60	1.78	2.20
	1.80-2.50	/	2.06	2.28	1.90
	2.00-2.70	2.40	2.54	2.81	2.06
	2.38-3.18	3.40	3.60	3.99	3.00
	2.38-3.50	3.40	3.60	3.99	3.23
	2.38-4.00	3.40	3.60	3.99	3.69
	2.38-4.76	3.40	3.60	3.99	4.37
	3.18-4.76	6.05	6.42	7.11	5.64
	4.76-6.35	13.58	14.40	15.94	11.73
	4.76-7.80	13.58	14.40	15.94	12.50
	5.00-7.80	15.00	15.90	17.60	13.50
	5.00-10.0	15.00	15.90	17.60	17.50
	6.00-10.0	21.60	22.90	25.36	19.44
6x19	3.6-5.8	6.65	7.05	7.80	7.00
	6-8	18.50	19.60	21.70	16.80
	8-10	32.83	34.80	38.53	27.00
	9.3-11	49.97	52.97	58.65	35.50
	10-12	51.27	54.34	60.17	43.00
7x19	6.35-7.94	22.36	23.70	26.24	20.20
	7.94-9.53	34.95	37.04	41.00	29.50
