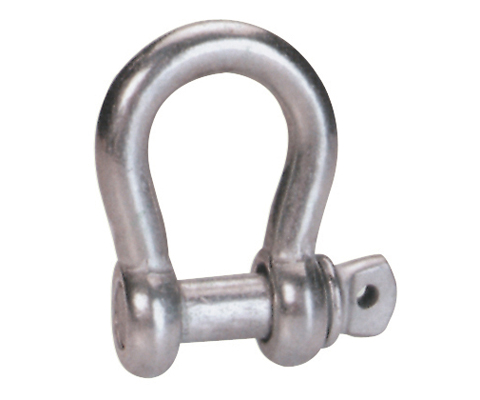

European Type Large Bow Shackle
Type：Rigging Hardware - Shackle

European Type Large Bow Shackle

SIZE W.L.L WEIGHT D d B H(I.L.) 2r

mm kg kg mm mm mm mm mm

5 80 0.019 5 5 10 19 15

6 100 0.034 6 6 12 25 20

8 200 0.07 8 8 16 32 24

10 320 0.13 10 10 20 38 30

12 520 0.26 12 12 25 51 36

16 800 0.5 16 16 32 64 48

20 1100 0.8 20 20 38 76 60

22 1500 1.3 22 22 44 89 66

25 2100 2 25 25 51 100 75

28 3000 3 28 28 56 115 86

◇Prev：6x19 Stainless Steel Wire Rope, EN 12385
◇Next：DIN 1480 Turnbuckle, Eye Eye

【European Type Large Bow Shackle 】

European Type Large Bow Shackle

SIZE	W.L.L	WEIGHT	D	d	B	H(I.L.)	2r
mm	kg	kg	mm	mm	mm	mm	mm
5	80	0.019	5	5	10	19	15
6	100	0.034	6	6	12	25	20
8	200	0.07	8	8	16	32	24
10	320	0.13	10	10	20	38	30
12	520	0.26	12	12	25	51	36
16	800	0.5	16	16	32	64	48
20	1100	0.8	20	20	38	76	60
22	1500	1.3	22	22	44	89	66
25	2100	2	25	25	51	100	75
28	3000	3	28	28	56	115	86
