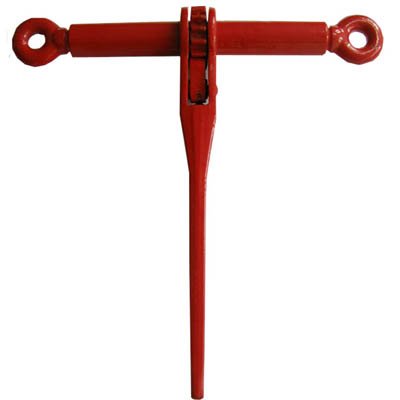

Ratchet Type Load Binder without Links or Hooks
Type：Rigging Hardware - Load Binders

Ratchet Type Load Binder without Links or Hooks

Min-Max
Chain
Size Working
Load
Limit Proof
Load Minimum
Ultimate
Load Weight
/Each Handle
Length Dimensions

(in.)

(in.) (lbs.) (lbs.) (lbs.) (lbs.) (in.) A B C E E1 F

3/8 5400 10800 19000 7.8 13.42 13.92 1.3 2.6 13.7 21.7 0.79

1/2 9200 18400 33000 7.8 13.92 13.92 1.3 2.6 13.7 21.7 1.02

5/8 13000 26000 46000 8.5 13.92 13.92 1.3 2.6 14.17 22.17 1.02

◇Prev：6x19 Stainless Steel Wire Rope, EN 12385
◇Next：Stainless Steel European Type Large Dee Shackle, AISI 316, AISI 304

【Ratchet Type Load Binder without Links or Hooks】

Ratchet Type Load Binder without Links or Hooks

Min-Max Chain Size	Working Load Limit	Proof Load	Minimum Ultimate Load	Weight /Each	Handle Length	Dimensions
Min-Max Chain Size	Working Load Limit	Proof Load	Minimum Ultimate Load	Weight /Each	Handle Length	(in.)
(in.)	(lbs.)	(lbs.)	(lbs.)	(lbs.)	(in.)	A	B	C	E	E1	F
3/8	5400	10800	19000	7.8	13.42	13.92	1.3	2.6	13.7	21.7	0.79
1/2	9200	18400	33000	7.8	13.92	13.92	1.3	2.6	13.7	21.7	1.02
5/8	13000	26000	46000	8.5	13.92	13.92	1.3	2.6	14.17	22.17	1.02
