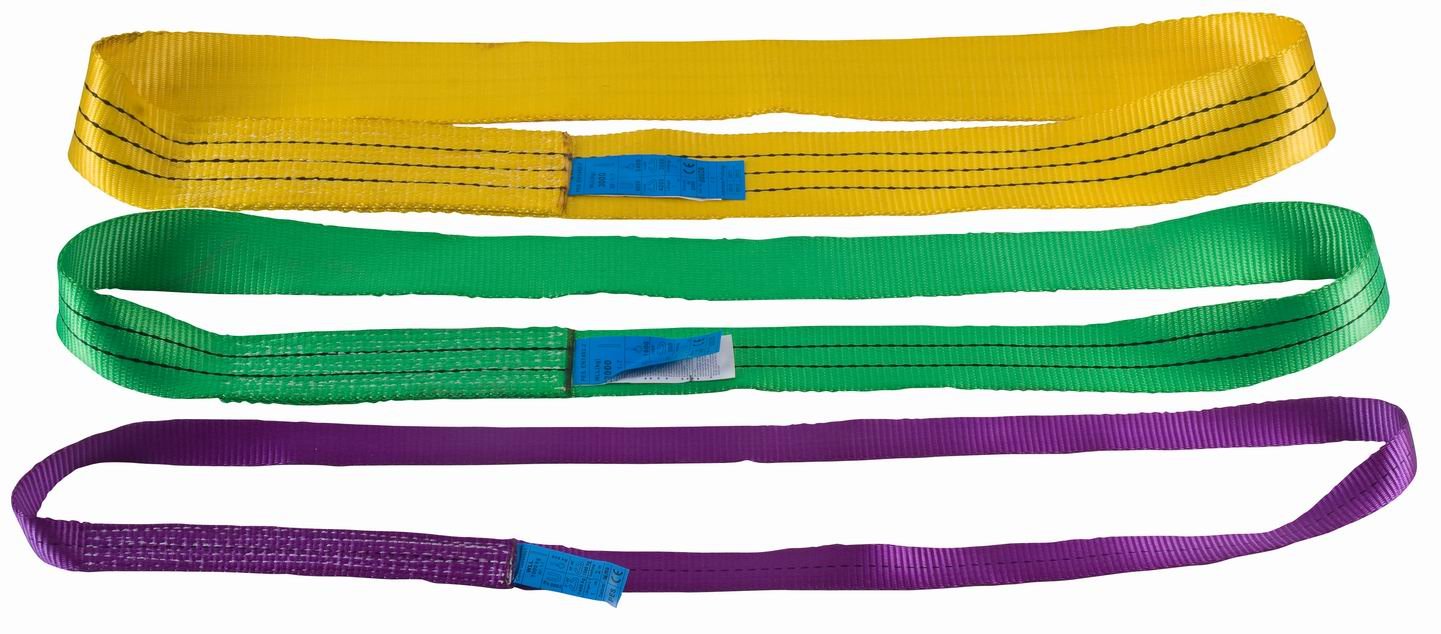

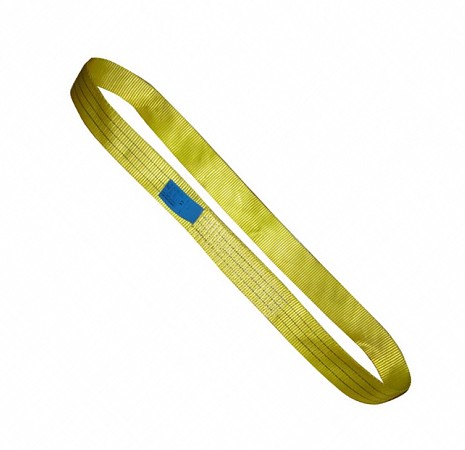

Endless Webbing Slings, EN1492-1
Single ply
Colourcoded according to EN1492-1	Working Load Limit with 1 webbing sling							Working Load Limit with 2 webbing slings
	Straight lift	Chocked  lift	0-7	β				Straight lift up  to 45	Choked lift up  to 45	Straight lift 45-60	Choked lift 45-60
				0-7	7-45	45-60	45-60
	1	0.8	2	1.4	1	0.7	0.5	1.4	1.12	1	0.8
WLL 1T	1.000	800	2.000	1.400	1.000	700	500	1.400	1.120	1.000	800
WLL 2T	2.000	1.600	4.000	2.800	2.000	1.400	1.000	2.800	2.240	2.000	1.600
WLL 3T	3.000	2.400	6.000	4.200	3.000	2.100	1.500	4.200	3.360	3.000	2.400
WLL 4T	4.000	3.200	8.000	5.600	4.000	2.800	2.000	5.600	4.480	4.000	3.200
WLL 5T	5,000	4,000	10,000	7,000	5,000	3,500	2,500	7,000	5,600	5,000	4,000
WLL 6T	6,000	4,800	12,000	8,400	6,000	4,200	3,000	8,400	6,720	6,000	4,800
WLL 8T	8,000	6,400	16,000	11,200	8,000	5,600	4,000	11,200	8,960	8,000	6,400
Double ply
Colourcoded according to EN1492-1	Working Load Limit with 1 webbing sling							Working Load Limit with 2 webbing slings
	Straight lift	Chocked  lift	0-7	β				Straight lift up  to 45	Choked lift up  to 45	Straight lift 45-60	Choked lift 45-60
				0-7	7-45	45-60	45-60
	1	0.8	2	1.4	1	0.7	0.5	1.4	1.12	1	0.8
WLL 2T	2.000	1.600	4.000	2.800	2.000	1.400	1.000	2.800	2.240	2.000	1.600
WLL 3T	3.000	2.400	6.000	4.200	3.000	2.100	1.500	4.200	3.360	3.000	2.400
WLL 4T	4.000	3.200	8.000	5.600	4.000	2.800	2.000	5.600	4.480	4.000	3.200
WLL 6T	6.000	4.800	12.000	8.400	6.000	4.200	3.000	8.400	6.720	6.000	4.800
WLL 8T	8.000	6.400	16.000	11.200	8.000	5.600	4.000	11.200	8.960	8.000	6.400
Type   -Endless polyester webbing slings.  -Single or double ply. Technical specifications  -Colour coded according to EN 1492-1.  -Capacity stripes; each stripe is equal to 1 tonne capacity.  Characteristics  -Low elongation.  -Extra strong webbing for a high abrasion resistance. Norms  -According to Machine Directive 2006/42/EC.
